220V Electric Vehicle Charger 7KW 32A Rapid Charger For Electric Cars
Quick Detail:
Model Number: GS7-AC-B01
Rated Voltage:220V AC
Rated Current: 32A
Rated Output Power: 7kw
Charging Port: Type 2 Cable
Cable Length: 3.5M/Customized
Communication: 3G/4G/5G, WIFI or Bluetooth Optional
Start Mode: Plug and Play/RFID card/App

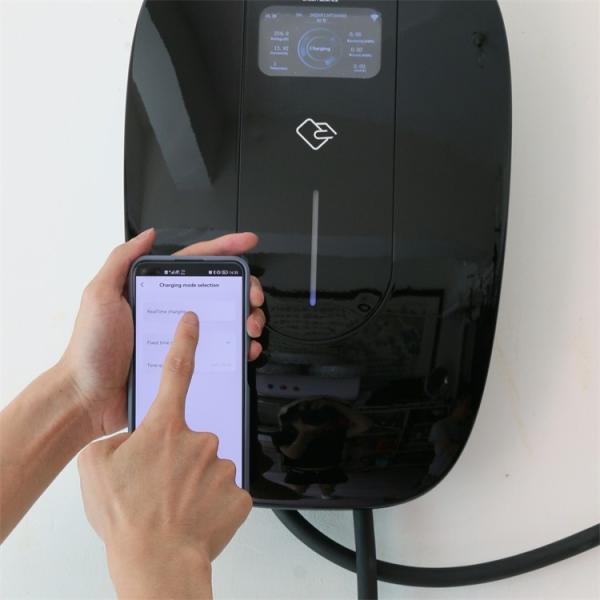

Function: APP Control, screen display, Voltage Monitoring
Specifications:
| Product Name | EV Charging Station (WallBox) | |||
| Data | Model | GS7-AC-BO1 | GS11-AC-BO1 | GS22-AC-BO1 |
| Input | Power Supply | 1P+N+PE | 3P+N+PE | 3P+N+PE |
| Rated Voltage | 200~220V AC | 380~400V AC | 380~400V AC | |
| Rated Current | 32A | 16A | 32A | |
| Output | Output Voltage | 200~220V AC | 380~400V AC | 380~400V AC |
| Output Current | 32A | 16A | 32A | |
| Rated Power | 7KW | 11KW | 22KW | |
| Package | Unit Size | 340*285*147mm | ||
| Package Size | 570*350*310mm | 570*350*310mm | 570*350*310mm | |
| Net Weight | 3.8KGS | 4.5KGS | 4.5KGS | |
| Gross Weight | 6.5KGS | 6.5KGS | 6.5KGS | |
| Communication | WIFI | Optional | ||
| 3G/4G/5G | Optional | |||
| OCPP | OCPP 1.6 Json (OCPP 2.0 Optional) | |||
| User Interface | Charging Port | Type 1/ Type 2 | ||
| Cable Length | 3.5M or customization length | |||
| LED Indicator | White/Green/Black/Blue/Orange/Purple/Customized | |||
| Start Mode | Plug&Play / RFID Card / APP | |||
| Emergency Stop | YES | |||
| Environment | Installation | Wall-mounted Pole Mounted | ||
| Work Temperature | -25℃-+50℃ | |||
| Work Humidity | 5%-95% | |||
| Work Altitude | <2000M | |||
Our Company:
Sichuan Tianfu Xiongzhou Group was founded in 2010, located in Xincheng District, Jianyang City, Sichuan Province. We are committed to the R&D and sales of IT intelligent products. In 2016, Sichuan Tianfu Xiongzhou Intelligent Engineering Co., LTD was established, we focus on the R&D and sales of intelligent charging piles, plugs, connectors and other auto parts. We can design and manufacture AC charging piles in accordance with China (GB)/European Union (CE)/United States (UL) standards and software platforms equipped with OCPP 1.6 protocol according to customer requirements.
Our EV charger has the appearance of more innovative: Minimal size,streamline design; smarter terminal control: Wireless communication(Wi-Fi/Bluetooth), OCPP communication protocol with CMS , Smart charge or scheduled charge by App.
1. It has card swiping start and remote stop start, emergency button.
2. Reservation charging function, which can be charged regularly according to user needs, and it will automatically end when fully charged.
3. The historical record function can query the historical charging record and expense record.
4.wall-mount or floor-stand installation optional.
Maintainance
The power distribution system
The AC input of the charger is led out from the distribution box of the power grid,and the power shall be cut off before connection.
The power on and power off steps are as follows:
1. Check whether the power supply voltage is normal.
2. Closing: first close the main switch of the distribution box, and then close the branch circuit switch in turn.
3. A switch: pull each branch circuit switch first, and then pull the main switch of the distribution box. Pull the main brake in case of emergency.
|
|
