COLOURFUL EV CHARGER BRINGS YOU COLOURFUL LIFE
3 Years
| Ask Lasest Price | |
| Brand Name : | Green Science |
| Model Number : | GS22-AC-B01 |
| Certification : | GB CE UL |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 10000 Sets Per Month |
| Delivery Time : | 10-15Workday |

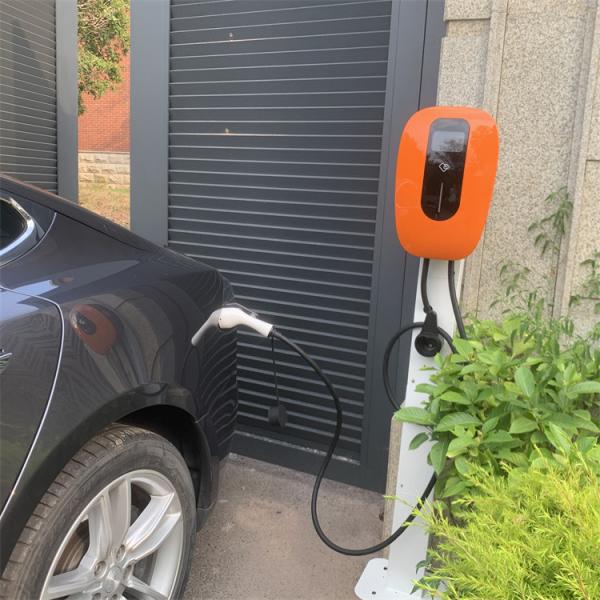

APP Control 22KW Mobile Electric Vehicle Charger IP65 340*285*147mm
Quick Detail:
Model Number: GS22-AC-B01
Rated Voltage:400V AC
Rated Current: 32A
Rated Output Power: 22kw
Charging Port: Type 2 Cable
Cable Length: 3.5M/Customized
Communication: 3G/4G/5G, WIFI or Bluetooth Optional
Start Mode: Plug and Play/RFID card/App
Function: APP Control, screen display, Voltage Monitoring
Specifications:
| Product Name | EV Charging Station (WallBox) | |||
| Data | Model | GS7-AC-BO1 | GS11-AC-BO1 | GS22-AC-BO1 |
| Input | Power Supply | 1P+N+PE | 3P+N+PE | 3P+N+PE |
| Rated Voltage | 200~220V AC | 380~400V AC | 380~400V AC | |
| Rated Current | 32A | 16A | 32A | |
| Output | Output Voltage | 200~220V AC | 380~400V AC | 380~400V AC |
| Output Current | 32A | 16A | 32A | |
| Rated Power | 7KW | 11KW | 22KW | |
| Package | Unit Size | 340*285*147mm | ||
| Package Size | 570*350*310mm | 570*350*310mm | 570*350*310mm | |
| Net Weight | 3.8KGS | 4.5KGS | 4.5KGS | |
| Gross Weight | 6.5KGS | 6.5KGS | 6.5KGS | |
| Communication | WIFI | Optional | ||
| 3G/4G/5G | Optional | |||
| OCPP | OCPP 1.6 Json (OCPP 2.0 Optional) | |||
| User Interface | Charging Port | Type 1/ Type 2 | ||
| Cable Length | 3.5M or customization length | |||
| LED Indicator | White/Green/Black/Blue/Orange/Purple/Customized | |||
| Start Mode | Plug&Play / RFID Card / APP | |||
| Emergency Stop | YES | |||
| Environment | Installation | Wall-mounted Pole Mounted | ||
| Work Temperature | -25℃-+50℃ | |||
| Work Humidity | 5%-95% | |||
| Work Altitude | <2000M | |||
Product Features:
1.This EV charger is a charging device that can be used to charge a electric vehicle, it has type 1 and type 2 for option, 3.5 meter cable and plug.
2.Simple structure: this EV charger is lightweight and it occupies a small space, so it's very portable be and easy to fixed.
3.Its intelligent hardware communicates with your vehicle for safe, simple and efficient charging.It has different functions for your option,such as: LCD Screen/WIFI/Bluetooth/4G/Ethernet and OCPP.
4.The product shell is fashionable and beautiful, we have various colors for you to choose from,such as: white, black, orange, purple, blue, grey, green. Besides, you can also customize different colors according to your preference.
5.Overall protection level reaches IP65, which has good dust and water resistance, so you can install and operate safely both indoors and outdoors.
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2: What's the MOQ?
A: Most of our products are in stock,no MOQ.If you have customized requirements, please contact us. We will provide specific solutions for your requirements.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
|
|
