    1 Phase 32Amp Wallbox EV Charger Type 2 7KW Fast Electric Car Charger

    Ask Lasest Price
    Brand Name : Green Science
    Model Number : GS7-AC-B01
    Certification : GB CE UL
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10000 Sets Per Month
    Delivery Time : 10-15Workday
    • Product Details
    • Company Profile

    1 Phase 32Amp Wallbox EV Charger Type 2 7KW Fast Electric Car Charger


    1 Phase 32Amp 7KW Wallbox EV Charger Type 2 Fast Electric Vehicle


    Quick Detail:

    · Model Number: GS7-AC-B01

    · Rated Voltage:200~220V AC

    · Rated Current: 32A

    · Rated Output Power: 7kw

    · Charging Port: Type 2 Cable

    · Cable Length: 3.5M/Customized

    · Emergency Stop: YES

    · Work Temperature:-25℃-+50℃

    · Work Humidity:5%-95%

    · Work Altitude:<2000M


    Description:

    Our EV charger has the appearance of more innovative: Minimal size,streamline design; smarter terminal control:

    Wireless communication(Wi-Fi/Bluetooth), OCPP communication protocol with CMS , Smart charge or scheduled charge by App.

    1.Warter proof level IP65:you can use the item outdoorand do not have to worry even inrainy days.The shell is made of ABS,light but robust, so it will not be easily damaged. You can add a lock at the bottom of the station to prevent lost

    2.4.3inch HD highlight LCD screenCustom languageShows live charging current, voltage,kW.h,time,etotal meter value

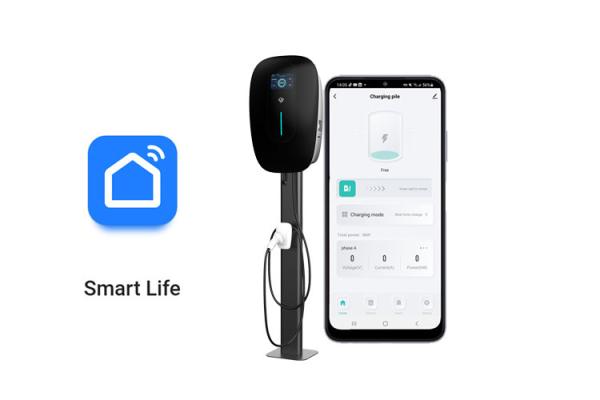

    3.Supports APP Control:

    *Remote Control by APP

    *Charging History Record

    *Charging Time Seting

    *Firmware Update

    *Carbon Emission Reduction.


    Specifications:

    Product NameEV Charging Station (WallBox)
    DataModelGS7-AC-BO1GS11-AC-BO1GS22-AC-BO1
    InputPower Supply1P+N+PE3P+N+PE3P+N+PE
    Rated Voltage200~220V AC380~400V AC380~400V AC
    Rated Current32A16A32A
    OutputOutput Voltage200~220V AC380~400V AC380~400V AC
    Output Current32A16A32A
    Rated Power7KW11KW22KW
    PackageUnit Size340*285*147mm
    Package Size570*350*310mm570*350*310mm570*350*310mm
    Net Weight3.8KGS4.5KGS4.5KGS
    Gross Weight6.5KGS6.5KGS6.5KGS
    CommunicationWIFIOptional
    3G/4G/5GOptional
    OCPPOCPP 1.6 Json (OCPP 2.0 Optional)
    User InterfaceCharging PortType 1/ Type 2
    Cable Length3.5M or customization length
    LED IndicatorWhite/Green/Black/Blue/Orange/Purple/Customized
    Start ModePlug&Play / RFID Card / APP
    Emergency StopYES
    EnvironmentInstallationWall-mounted Pole Mounted
    Work Temperature-25℃-+50℃
    Work Humidity5%-95%
    Work Altitude<2000M

    Applications:

    Our EV Charger can be widely used in both indoor and outdoor : home, parking lots, shopping malls, supermarkets, and so on.


    Frequently asked questions

    1. How does EV home charging work?

    By installing a residential charging station at your home or apartment, you can charge as you eat, sleep, and play, all while making sure your vehicle is ready-to-go the next morning.

    Home chargers are also more cost effective than public charging stations as they make use of cheaper electricity from the residential energy grid during off-peak hours.

    2. How fast are home charging stations?

    With a Level 2 residential charging station, most electric drivers will be able to charge their electric vehicle overnight and be ready to hit the road the next day. Level 2 charging stations are ideal for home scenarios because they deliver maximum power to an EV without requiring costly grid upgrades, depending on your location of course. here's an overview of how long it will take to charge:

    Level2:

    1 phase - 32A - 7KW - 7h20m

    3 phase - 16A - 11KW - 5h00m

    3 phase - 32A - 22KW - 3h45m

    3. Do EV ac home charging stations work with all electric vehicles?

    The short answer is yes: residential charging stations should work with all types of electric passenger vehicles.

    4. How much does it cost to charge my EV at home?

    The price for charging your vehicle at home depends entirely on how much you pay for each kilowatt-hour (kWh) of electricity used.

    In the long run, how much it costs to fully charge your EV at home will depend on a number of factors. However, the ultimate cost is still comparatively lower than for vehicles with internal combustion engines, not to mention the reduced cost to the environment due to CO2 emissions, and to our health care system due to air pollutants.
