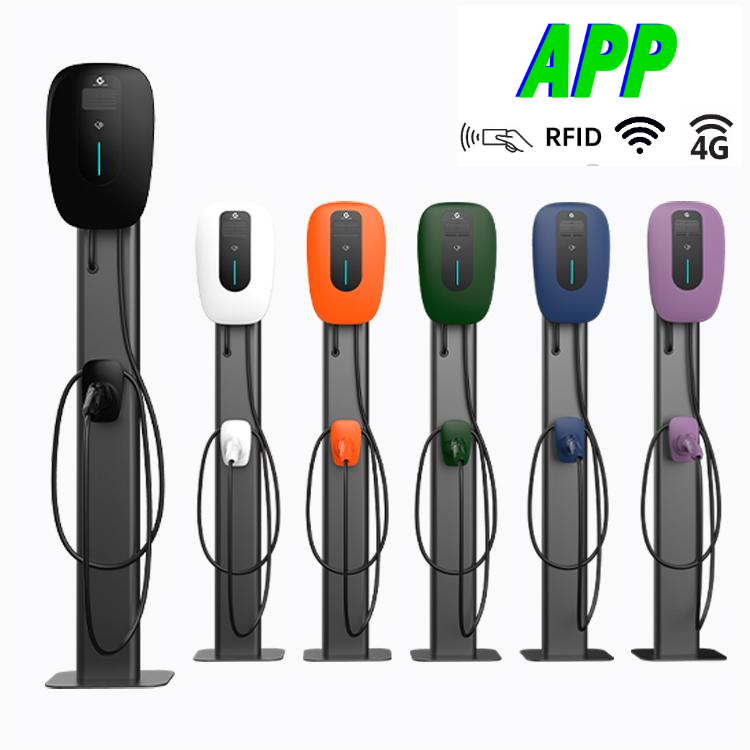

32Amp Commercial Electric EV Charging Stations GB/T 22kW

Sichuan Tianfu Xiongzhou Intelligent Engineering Co., Ltd
Contact Now
    Buy cheap 32Amp Commercial Electric EV Charging Stations GB/T 22kW from wholesalers

    Buy cheap 32Amp Commercial Electric EV Charging Stations GB/T 22kW from wholesalers
    • Buy cheap 32Amp Commercial Electric EV Charging Stations GB/T 22kW from wholesalers
    • Buy cheap 32Amp Commercial Electric EV Charging Stations GB/T 22kW from wholesalers

    32Amp Commercial Electric EV Charging Stations GB/T 22kW

    Ask Lasest Price
    Brand Name : Green Science
    Model Number : GS22-AC-B01
    Certification : GB CE UL
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10000 Per Month
    Delivery Time : 10-15Workday
    MOQ : 1 piece
    • Product Details
    • Company Profile

    32Amp Commercial Electric EV Charging Stations GB/T 22kW


    32Amps EV Charging Station GB/T 22KW Electric Vehicle Charger


    Our Company:

    Sichuan Tianfu Xiongzhou Intelligent Engineering Co., Ltd. was founded in 2016, locates in Chengdu. We dedicate in providing package technique and products solution for intelligent efficient and safe application of energy resources, and for energy saving and emission reduction. Through continuous technical innovation and marketing accumulation, We grown to be a professional supplier for EV charging facility and solutions.

    Our goal is not only to provide customers with products, complete solutions for product design, manufacturing and pre-sales & after-sales services, complete solutions to meet customer needs as the premise, with the premise of satisfying customers' needs and establishing long-term strategic partnerships with customers, ultimately achieving a win-win situation.


    Quick Detail:

    Model Number: GS22-AC-B01

    Rated Voltage:400V AC

    Rated Current: 32A

    Rated Output Power: 22kw

    Charging Port: Type 2 Cable

    Cable Length: 3.5M/Customized

    Communication: 3G/4G/5G, WIFI or Bluetooth Optional

    Start Mode: Plug and Play/RFID card/App

    Function: APP Control, screen display, Voltage Monitoring


    Specifications:

    Product NameEV Charging Station (WallBox)
    DataModelGS7-AC-BO1GS11-AC-BO1GS22-AC-BO1
    InputPower Supply1P+N+PE3P+N+PE3P+N+PE
    Rated Voltage200~220V AC380~400V AC380~400V AC
    Rated Current32A16A32A
    OutputOutput Voltage200~220V AC380~400V AC380~400V AC
    Output Current32A16A32A
    Rated Power7KW11KW22KW
    PackageUnit Size340*285*147mm
    Package Size570*350*310mm570*350*310mm570*350*310mm
    Net Weight3.8KGS4.5KGS4.5KGS
    Gross Weight6.5KGS6.5KGS6.5KGS
    CommunicationWIFIOptional
    3G/4G/5GOptional
    OCPPOCPP 1.6 Json (OCPP 2.0 Optional)
    User InterfaceCharging PortType 1/ Type 2
    Cable Length3.5M or customization length
    LED IndicatorWhite/Green/Black/Blue/Orange/Purple/Customized
    Start ModePlug&Play / RFID Card / APP
    Emergency StopYES
    EnvironmentInstallationWall-mounted Pole Mounted
    Work Temperature-25℃-+50℃
    Work Humidity5%-95%
    Work Altitude<2000M

    Electrical Hazard/Fire Hazard

    The charger's socket or charging gun (including the charging cable) must be regularly inspected for damage, and the casing must be inspected for damage.

    • If the charger is damaged, it must be switched off immediately and replaced .

    Do not perform charger repair or replacement without authorization, only by the manufacturer.

    Do not modify or modify the charger without authorization.

    Do not remove safety symbols, warning tips, nameplates, signs or pipeline marks.

    When installing for the first time, disconnect the power supply before connecting the external power supply to the charger input. Do not connect the line with live power.

    • No extension cable shall be used when connecting the electric vehicle to the electric vehicle power supply unit.

    Only connect electric vehicles or their charging equipment, do not connect other loads (power tools, etc.). When pulling the charging gun, please hold the plug, do not pull the cable.

    Do not bend, squeeze or bend the charging gun to cause mechanical damage.

    Do not contact the contact surface of the equipment with heat, dirt, or water.


    Why Choose Us?

    1. More competitive price

    Integrated R&D production and sales in one, can supply more competitive price for customer.

    2. Easy to operate

    Factory pre-commissioning of network settings– ready to connect out-of-the-box.

    3. High quality and complete after-sales service.

    4. Efficient Production capacity

    Our employees are all skilled and experienced, who can produce substantial qualified products in a shorter time, which minimize the lead time of customer order.

    5. Customization support

    Outer shell shape color customization available and logo customization available Etc, which meeting a large variety of customization request of customers.
