COLOURFUL EV CHARGER BRINGS YOU COLOURFUL LIFE
3 Years
| Ask Lasest Price | |
| Brand Name : | Green Science |
| Model Number : | GS7-AC-B01 |
| Certification : | GB CE UL |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 10000 Sets Per Month |
| Delivery Time : | 10-15Workday |

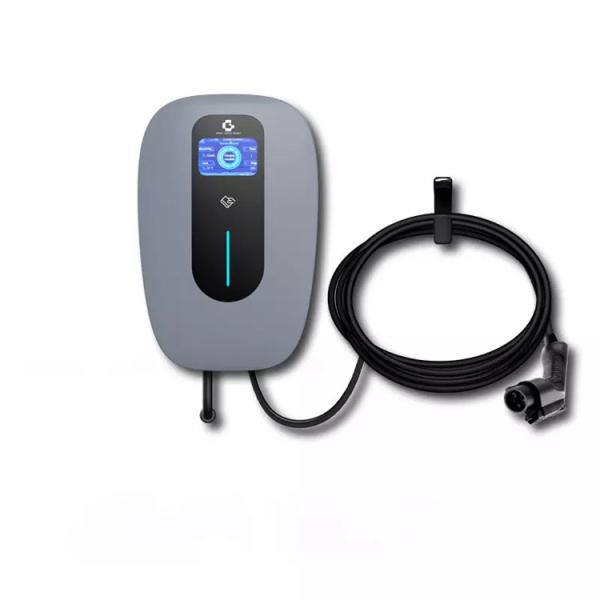

IP65 Waterproof 32A AC EV Charging Station In Public Lots With Lcd Screen
Quick Detail:
Model Number: GS7-AC-B01
Rated Voltage:220V AC
Rated Current: 32A
Rated Output Power: 7kw
Charging Port: Type 2 Cable
Cable Length: 3.5M/Customized
Communication: 3G/4G/5G, WIFI or Bluetooth Optional
Start Mode: Plug and Play/RFID card/App
Function: APP Control, screen display, Voltage Monitoring
Specifications:
| Product Name | EV Charging Station (WallBox) | |||
| Data | Model | GS7-AC-BO1 | GS11-AC-BO1 | GS22-AC-BO1 |
| Input | Power Supply | 1P+N+PE | 3P+N+PE | 3P+N+PE |
| Rated Voltage | 200~220V AC | 380~400V AC | 380~400V AC | |
| Rated Current | 32A | 16A | 32A | |
| Output | Output Voltage | 200~220V AC | 380~400V AC | 380~400V AC |
| Output Current | 32A | 16A | 32A | |
| Rated Power | 7KW | 11KW | 22KW | |
| Package | Unit Size | 340*285*147mm | ||
| Package Size | 570*350*310mm | 570*350*310mm | 570*350*310mm | |
| Net Weight | 3.8KGS | 4.5KGS | 4.5KGS | |
| Gross Weight | 6.5KGS | 6.5KGS | 6.5KGS | |
| Communication | WIFI | Optional | ||
| 3G/4G/5G | Optional | |||
| OCPP | OCPP 1.6 Json (OCPP 2.0 Optional) | |||
| User Interface | Charging Port | Type 1/ Type 2 | ||
| Cable Length | 3.5M or customization length | |||
| LED Indicator | White/Green/Black/Blue/Orange/Purple/Customized | |||
| Start Mode | Plug&Play / RFID Card / APP | |||
| Emergency Stop | YES | |||
| Environment | Installation | Wall-mounted Pole Mounted | ||
| Work Temperature | -25℃-+50℃ | |||
| Work Humidity | 5%-95% | |||
| Work Altitude | <2000M | |||
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2: What's the MOQ?
A: Most of our products are in stock,no MOQ.If you have customized requirements, please contact us. We will provide specific solutions for your requirements.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A1:We keep good quality and competitive price to ensure our customers benefit ;
A2:We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Maintainance
Line system
Regularly check the input and output cables of the charger:
1. Weekly line inspection: check the cable for heating and damage.
2. Monthly line inspection: check whether the cable is heated or damaged, whether the cable is stressed by external tension, and whether the cable is fixed firmly.
3. Annual routine inspection: check whether the connection between the cableand the switch is tight, whether the grounding is reliable, whether the cable is heated and damaged, whether the insulation resistance of the cable meets the requirements, whether the sealing measures of the cable charger are intact, and whether the holes are sealed tightly.
|
|
