COLOURFUL EV CHARGER BRINGS YOU COLOURFUL LIFE
3 Years
| Ask Lasest Price | |
| Brand Name : | Green Science |
| Model Number : | GS11-AC-B01 |
| Certification : | GB CE UL |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 10000 Sets Per Month |
| Delivery Time : | 10-15Workday |

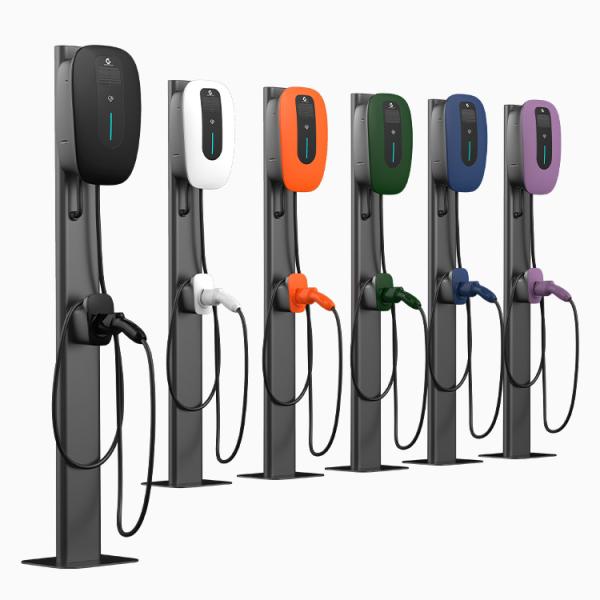

UL 11KW 3 Phase Fast Car EV Charger Wallbox IEC 62196-2 In Public Parking Lots
Quick Detail:
· Model Number: GS11-AC-B01
· Rated Current: 16A
· Rated Voltage:380V AC
· Rated Output Power: 11kw
· Start Mode: Plug and Play/RFID card/App
· Communication: 3G/4G/5G, WIFI or Bluetooth Optional
· Function: APP Control, screen display, Voltage Monitoring
Features:
1.Easy to install : Only need to fix with bolts and nuts, and connect the electric wiring according to the manual book.
2.Simple to charge : Plug & Charge, or card to charge, or controlled by App, RFID , Wifi ,it depends on your choice.
3. Compatible All EVs : It's built to be compatible with all the EVs with the type 2 plug connectors.
All the charging pile passed CE and cable length adopted high quality material TPE and TPU
Specifications:
| Product Name | EV Charging Station (WallBox) | |||
| Data | Model | GS7-AC-BO1 | GS11-AC-BO1 | GS22-AC-BO1 |
| Input | Power Supply | 1P+N+PE | 3P+N+PE | 3P+N+PE |
| Rated Voltage | 200~220V AC | 380~400V AC | 380~400V AC | |
| Rated Current | 32A | 16A | 32A | |
| Output | Output Voltage | 200~220V AC | 380~400V AC | 380~400V AC |
| Output Current | 32A | 16A | 32A | |
| Rated Power | 7KW | 11KW | 22KW | |
| Package | Unit Size | 340*285*147mm | ||
| Package Size | 570*350*310mm | 570*350*310mm | 570*350*310mm | |
| Net Weight | 3.8KGS | 4.5KGS | 4.5KGS | |
| Gross Weight | 6.5KGS | 6.5KGS | 6.5KGS | |
| Communication | WIFI | Optional | ||
| 3G/4G/5G | Optional | |||
| OCPP | OCPP 1.6 Json (OCPP 2.0 Optional) | |||
| User Interface | Charging Port | Type 1/ Type 2 | ||
| Cable Length | 3.5M or customization length | |||
| LED Indicator | White/Green/Black/Blue/Orange/Purple/Customized | |||
| Start Mode | Plug&Play / RFID Card / APP | |||
| Emergency Stop | YES | |||
| Environment | Installation | Wall-mounted Pole Mounted | ||
| Work Temperature | -25℃-+50℃ | |||
| Work Humidity | 5%-95% | |||
| Work Altitude | <2000M | |||
Our Advantages
1. Smart EV charger manufactured with GB, CE and UL certificate.
2. Internationalized sales team with 100% working enthusiasm.
3. Each EV charger passes water leakage test before leaves factory.
4. Direct Manufacturer =High Quality +Competitive price + Good Service.
5. One of the famous companies in the industry.
6. The quality of products has won the praise of domestic and foreign customers.
FAQ
Q1. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q2: How do you make our business long-term and good relationship?
A1:We keep good quality and competitive price to ensure our customers benefit ;
A2:We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 25 days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
|
|
