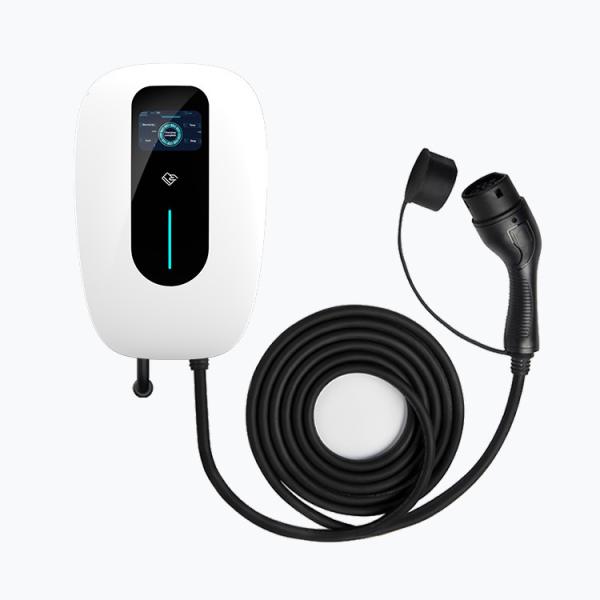

    22KW Type 2 Wallbox Charging Station IP65 CE White Orange Purple

    Ask Lasest Price
    Brand Name : Green Science
    Model Number : GS22-AC-B01
    Certification : GB CE UL
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10000 Sets Per Month
    Delivery Time : 10-15Workday
    • Product Details
    • Company Profile

    22KW Type 2 Wallbox Charging Station IP65 CE White Orange Purple


    32A 22KW Wallbox EV Charger Type 2 EV Charging Station IP65 CE


    Quick Detail:

    · Model Number: GS22-AC-B01

    · Rated Voltage:380~400V AC

    · Rated Current: 32A

    · Rated Output Power: 22kw

    · Charging Port: Type 2 Cable

    · Cable Length: 3.5M/Customized

    · Emergency Stop: YES

    · Work Temperature:-25℃-+50℃

    · Work Humidity:5%-95%


    Product Function:

    1. It has card swiping start and remote stop start, emergency button.

    2. Reservation charging function, which can be charged regularly according to user needs, and it will automatically end when fully charged.

    3. The historical record function can query the historical charging record and expense record.

    4. Equipped with display screen to display SOC information in real time, Estimated fill time.

    5. With overload protection, overvoltage protection, undervoltage protection, short circuit protection, overtemperature protection, emergency stop and other functions.


    Specifications:

    Product NameEV Charging Station (WallBox)
    DataModelGS7-AC-BO1GS11-AC-BO1GS22-AC-BO1
    InputPower Supply1P+N+PE3P+N+PE3P+N+PE
    Rated Voltage200~220V AC380~400V AC380~400V AC
    Rated Current32A16A32A
    OutputOutput Voltage200~220V AC380~400V AC380~400V AC
    Output Current32A16A32A
    Rated Power7KW11KW22KW
    PackageUnit Size340*285*147mm
    Package Size570*350*310mm570*350*310mm570*350*310mm
    Net Weight3.8KGS4.5KGS4.5KGS
    Gross Weight6.5KGS6.5KGS6.5KGS
    CommunicationWIFIOptional
    3G/4G/5GOptional
    OCPPOCPP 1.6 Json (OCPP 2.0 Optional)
    User InterfaceCharging PortType 1/ Type 2
    Cable Length3.5M or customization length
    LED IndicatorWhite/Green/Black/Blue/Orange/Purple/Customized
    Start ModePlug&Play / RFID Card / APP
    Emergency StopYES
    EnvironmentInstallationWall-mounted Pole Mounted
    Work Temperature-25℃-+50℃
    Work Humidity5%-95%
    Work Altitude<2000M

    Our Company:

    Sichuan Tianfu Xiongzhou Group was founded in 2010, located in Xincheng District, Jianyang City, Sichuan Province. We are committed to the

    R&D and sales of IT intelligent products. In 2016, Sichuan Tianfu Xiongzhou Intelligent Engineering Co., LTD was established, we focus on the

    R&D and sales of intelligent charging piles, plugs, connectors and other auto parts. We can design and manufacture AC charging piles in

    accordance with China (GB)/European Union (CE)/United States (UL) standards and software platforms equipped with OCPP 1.6 protocol

    according to customer requirements.

    Our goal is not only to provide customers with products, complete solutions for product design, manufacturing and pre-sales & after-sales

    services, complete solutions to meet customer needs as the premise, with the premise of satisfying customers' needs and establishing long-term

    strategic partnerships with customers, ultimately achieving a win-win situation.


    FAQ

    Q1. What is your terms of packing?

    A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

    Q2: What's the MOQ?

    A: Most of our products are in stock,no MOQ.If you have customized requirements, please contact us. We will provide specific solutions for your requirements.

    Q3. What is your terms of delivery?

    A: FOB, CFR, CIF, DDU.

    Q4. What is your sample policy?

    A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

    Q5. Do you test all your goods before delivery?

    A: Yes, we have 100% test before delivery

    Q6: How do you make our business long-term and good relationship?

    A1:We keep good quality and competitive price to ensure our customers benefit ;

    A2:We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
