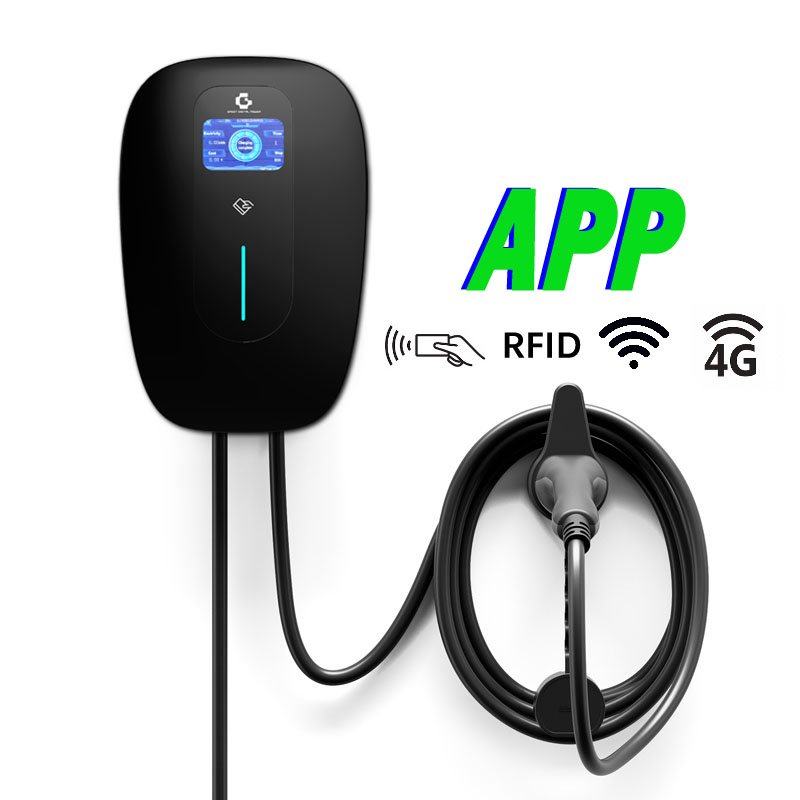

380V AC Smart Home Car Charger 11kw 16A EV Charger With 4G Function

Sichuan Tianfu Xiongzhou Intelligent Engineering Co., Ltd
Contact Now
    Buy cheap 380V AC Smart Home Car Charger 11kw 16A EV Charger With 4G Function from wholesalers

    Buy cheap 380V AC Smart Home Car Charger 11kw 16A EV Charger With 4G Function from wholesalers
    • Buy cheap 380V AC Smart Home Car Charger 11kw 16A EV Charger With 4G Function from wholesalers
    • Buy cheap 380V AC Smart Home Car Charger 11kw 16A EV Charger With 4G Function from wholesalers

    380V AC Smart Home Car Charger 11kw 16A EV Charger With 4G Function

    Ask Lasest Price
    Brand Name : Green Science
    Model Number : GS11-AC-B01
    Certification : GB/CE/UL
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10000 Sets Per Month
    Delivery Time : 10-15Workday
    • Product Details
    • Company Profile

    380V AC Smart Home Car Charger 11kw 16A EV Charger With 4G Function


    OCPP 1.6 Json or OCPP 2.0 Optional Smart EV Charger 11kw 16A With 4G Function


    Quick Detail:

    · Model Number: GS11-AC-B01

    · Rated Voltage:380V AC

    · Rated Current: 16A

    · Rated Output Power: 11kw

    · Charging Port: Type 2 Cable

    · Communication: 3G/4G/5G, WIFI or Bluetooth Optional

    · Function: APP Control, screen display, Voltage Monitoring


    Description:

    This EV charger has the appearance of more innovative:

    1.Minimal size,streamline design; smarter terminal control: Wireless communication(Wi-Fi/Bluetooth),

    OCPP communication protocol with CMS , Smart charge or scheduled charge by App ;

    2.simpler and more flexible option: Type 1 or Type 2 charging cable , App operation or RFID authentication

    or plug and play , Wall-mount or floor-stand installation and safer security: 6mA DC residual current protection , Anti-welding protection

    Specifications:

    Product NameEV Charging Station (WallBox)
    DataModelGS7-AC-BO1GS11-AC-BO1GS22-AC-BO1
    InputPower Supply1P+N+PE3P+N+PE3P+N+PE
    Rated Voltage200~220V AC380~400V AC380~400V AC
    Rated Current32A16A32A
    OutputOutput Voltage200~220V AC380~400V AC380~400V AC
    Output Current32A16A32A
    Rated Power7KW11KW22KW
    PackageUnit Size340*285*147mm
    Package Size570*350*310mm570*350*310mm570*350*310mm
    Net Weight3.8KGS4.5KGS4.5KGS
    Gross Weight6.5KGS6.5KGS6.5KGS
    CommunicationWIFIOptional
    3G/4G/5GOptional
    OCPPOCPP 1.6 Json (OCPP 2.0 Optional)
    User InterfaceCharging PortType 1/ Type 2
    Cable Length3.5M or customization length
    LED IndicatorWhite/Green/Black/Blue/Orange/Purple/Customized
    Start ModePlug&Play / RFID Card / APP
    Emergency StopYES
    EnvironmentInstallationWall-mounted Pole Mounted
    Work Temperature-25℃-+50℃
    Work Humidity5%-95%
    Work Altitude<2000M
    Applications:
    Our EV Charger can be widely used in both indoor and outdoor : home, parking lots, shopping malls, supermarkets, and so on.


    Electrical Hazard/Fire Hazard

    The charger's socket or charging gun (including the charging cable) must be regularly inspected for damage, and the casing must be inspected for damage.

    • If the charger is damaged, it must be switched off immediately and replaced .

    Do not perform charger repair or replacement without authorization, only by the manufacturer.

    Do not modify or modify the charger without authorization.

    Do not remove safety symbols, warning tips, nameplates, signs or pipeline marks.


    FAQ

    Q1. What is your terms of packing?

    A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,

    we can pack the goods in your branded boxes after getting your authorization letters.

    Q2: What's the MOQ?

    A: Most of our products are in stock,no MOQ.If you have customized requirements, please contact us.

    We will provide specific solutions for your requirements.

    Q3. What is your terms of delivery?

    A: FOB, CFR, CIF, DDU.

    Q4. How about your delivery time?

    A: Generally, it will take 3 to 25 days after receiving your advance payment.

    The specific delivery time depends on the items and the quantity of your order.

    Q5. Can you produce according to the samples?

    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    Q6. What is your sample policy?

    A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

    Q7. Do you test all your goods before delivery?

    A: Yes, we have 100% test before delivery

    Q8: How do you make our business long-term and good relationship?

    A1:We keep good quality and competitive price to ensure our customers benefit ;

    A2:We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
