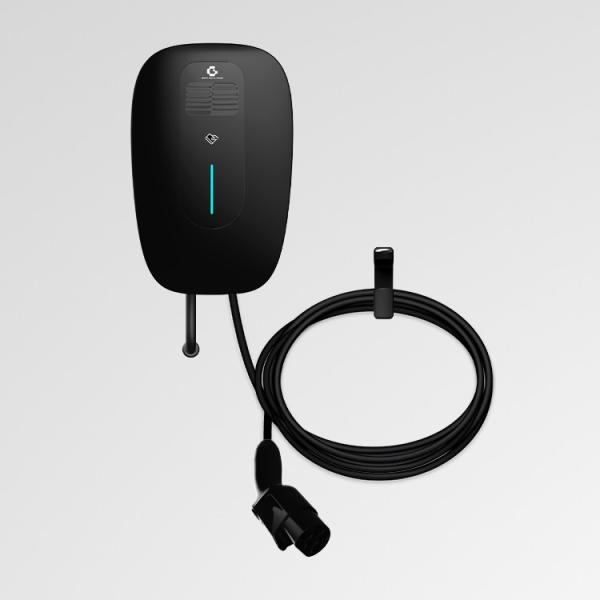

IP65 Waterproof Smart EV Charger 11kw 16A Electric Car Charging Pile
Quick Detail:
· Model Number: GS11-AC-B01
· Rated Voltage:400V AC
· Charging Port: Type 2 Cable
· Function: APP Control, screen display, Voltage Monitoring
· Communication: 3G/4G/5G, WIFI or Bluetooth Optional
Description:
This EV charger is designed with modern outlook. And there’s intelligent control system:
wireless communication (Wi-Fi/Bluetooth), Ethernet/4G optional. Also intelligent operation by App and cashless payment.
In addition, there are flexible options for this wallbox EV charger.
1.with universal type 2 socket,type 1/type 2 charging cable optional;
2.wall-mount or floor-stand installation optional.
Specifications:
| Product Name | EV Charging Station (WallBox) | |||
| Data | Model | GS7-AC-BO1 | GS11-AC-BO1 | GS22-AC-BO1 |
| Input | Power Supply | 1P+N+PE | 3P+N+PE | 3P+N+PE |
| Rated Voltage | 200~220V AC | 380~400V AC | 380~400V AC | |
| Rated Current | 32A | 16A | 32A | |
| Output | Output Voltage | 200~220V AC | 380~400V AC | 380~400V AC |
| Output Current | 32A | 16A | 32A | |
| Rated Power | 7KW | 11KW | 22KW | |
| Package | Unit Size | 340*285*147mm | ||
| Package Size | 570*350*310mm | 570*350*310mm | 570*350*310mm | |
| Net Weight | 3.8KGS | 4.5KGS | 4.5KGS | |
| Gross Weight | 6.5KGS | 6.5KGS | 6.5KGS | |
| Communication | WIFI | Optional | ||
| 3G/4G/5G | Optional | |||
| OCPP | OCPP 1.6 Json (OCPP 2.0 Optional) | |||
| User Interface | Charging Port | Type 1/ Type 2 | ||
| Cable Length | 3.5M or customization length | |||
| LED Indicator | White/Green/Black/Blue/Orange/Purple/Customized | |||
| Start Mode | Plug&Play / RFID Card / APP | |||
| Emergency Stop | YES | |||
| Environment | Installation | Wall-mounted Pole Mounted | ||
| Work Temperature | -25℃-+50℃ | |||
| Work Humidity | 5%-95% | |||
| Work Altitude | <2000M | |||
