50Hz 60HZ 11KW Home Car EV Charger 3G High Compatibility In School Parking Lots

Sichuan Tianfu Xiongzhou Intelligent Engineering Co., Ltd
Contact Now
    Buy cheap 50Hz 60HZ 11KW Home Car EV Charger 3G High Compatibility In School Parking Lots from wholesalers

    Buy cheap 50Hz 60HZ 11KW Home Car EV Charger 3G High Compatibility In School Parking Lots from wholesalers
    • Buy cheap 50Hz 60HZ 11KW Home Car EV Charger 3G High Compatibility In School Parking Lots from wholesalers
    • Buy cheap 50Hz 60HZ 11KW Home Car EV Charger 3G High Compatibility In School Parking Lots from wholesalers

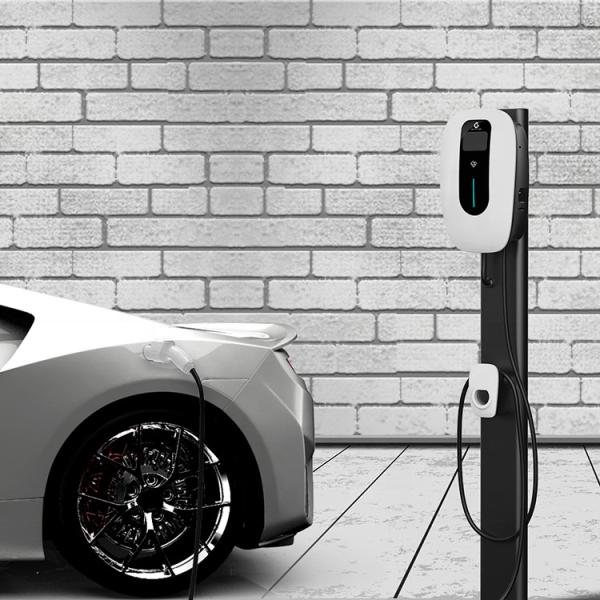

    50Hz 60HZ 11KW Home Car EV Charger 3G High Compatibility In School Parking Lots

    Ask Lasest Price
    Brand Name : Green Science
    Model Number : GS11-AC-B01
    Certification : GB CE UL
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10000 Sets Per Month
    Delivery Time : 10-15Workday
    • Product Details
    • Company Profile

    50Hz 60HZ 11KW Home Car EV Charger 3G High Compatibility In School Parking Lots


    50Hz 60HZ 11KW Car EV Charger High Compatibility In School Parking Lots


    Quick Detail:

    · Model Number: GS11-AC-B01

    · Rated Voltage:380V AC

    · Rated Current: 16A

    · Rated Output Power: 11kw

    · Charging Port: Type 2 Cable

    · Cable Length: 3.5M/Customized

    · Communication: 3G/4G/5G, WIFI or Bluetooth Optional

    · Start Mode: Plug and Play/RFID card/App

    · Function: APP Control, screen display, Voltage Monitoring


    Description:

    This EV charger is designed with intelligent control system which include wireless communication (Wi-Fi/Bluetooth), Ethernet/4G optional.

    Also intelligent operation by App and cashless payment.Besides, there are some other flexible options for this EV charger.

    Firstly, with universal type 2 socket,type 1/type 2 charging cable optional;

    Secondly, start mode, optional with app operation or RFID card or plug and play;

    Thirdly, wall-mount or floor-stand installation optional.

    Specifications:

    Product NameEV Charging Station (WallBox)
    DataModelGS7-AC-BO1GS11-AC-BO1GS22-AC-BO1
    InputPower Supply1P+N+PE3P+N+PE3P+N+PE
    Rated Voltage200~220V AC380~400V AC380~400V AC
    Rated Current32A16A32A
    OutputOutput Voltage200~220V AC380~400V AC380~400V AC
    Output Current32A16A32A
    Rated Power7KW11KW22KW
    PackageUnit Size340*285*147mm
    Package Size570*350*310mm570*350*310mm570*350*310mm
    Net Weight3.8KGS4.5KGS4.5KGS
    Gross Weight6.5KGS6.5KGS6.5KGS
    CommunicationWIFIOptional
    3G/4G/5GOptional
    OCPPOCPP 1.6 Json (OCPP 2.0 Optional)
    User InterfaceCharging PortType 1/ Type 2
    Cable Length3.5M or customization length
    LED IndicatorWhite/Green/Black/Blue/Orange/Purple/Customized
    Start ModePlug&Play / RFID Card / APP
    Emergency StopYES
    EnvironmentInstallationWall-mounted Pole Mounted
    Work Temperature-25℃-+50℃
    Work Humidity5%-95%
    Work Altitude<2000M

    Our Company:

    Sichuan Tianfu Xiongzhou Intelligent Engineering Co., LTD was founded in 2016, we focus on the R&D and sales of intelligent charging piles, plugs, connectors and other auto parts. According to customer requirements, we can design and manufacture AC charging piles in accordance with China (GB)/European Union (CE)/United States (UL) standards and software platforms equipped with OCPP 1.6 protocol .

    Our goal is not only to provide customers with products, include but not limited to complete solutions for product design, manufacturing and pre-sales & after-sales services, complete solutions to meet customer needs as the premise, with the premise of satisfying customers' needs and establishing long-term strategic partnerships with customers, ultimately achieving a win-win situation.


    Our Advantages

    1. Smart EV charger manufactured with GB, CE and UL certificate.

    2. Internationalized sales team with 100% working enthusiasm.

    3. Each EV charger passes water leakage test before leaves factory.

    4. Direct Manufacturer =High Quality +Competitive price + Good Service.

    5. The quality of products has won the praise of domestic and foreign customers.


    CAUTION.

    1.Don't submerge the EV charging cable in water.

    2. Don't step on, fold, or knot the cable.

    3. Don't drop the EV charging box or place a heavy object on it.

    4. Don't place the charging cable near a high-temperature object when charging.

    5.Don't operate the EVSE in temperatures beyond its operating range of-25°C to 55°C.

    6. Power-supply side input cable should be at least 3*2.5mm rec ommended 3*4mm), with a standard 16A socket.

    It is sug gested that the power distribution is done by the professionals.

    7.Don't put your fingers into the charging connector when the power plug is still connected to the power.

    8. Don't use this EV charging box when the cable is damaged.

    9. The EV charging box is only for EV charging

    10. Don't use this device with another brand's extension cord or adaptor.


    Preferred Cable

    Use copper cables that comply with international standards, with a variety of cables to choose from


    TPU/TPE Outer Skin

    Special cable for charging equipment, strong and wear-resistant, easy to adapt to bad weather such as low temperature and high temperature
