COLOURFUL EV CHARGER BRINGS YOU COLOURFUL LIFE
3 Years
| Ask Lasest Price | |
| Brand Name : | Green Science |
| Model Number : | GS11-AC-B01 |
| Certification : | GB CE UL |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 10000 Sets Per Month |
| Delivery Time : | 10-15Workday |

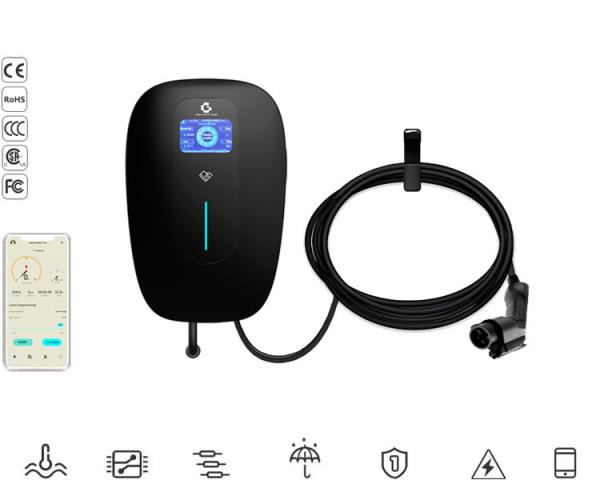

11KW 16A Household Car EV Charger 3 Phase In Public Parking Lots
Quick Detail:
· Model Number: GS11-AC-B01
· Rated Voltage:380V AC
· Rated Current: 16A
· Rated Output Power: 11kw
· Charging Port: Type 2 Cable
· Cable Length: 3.5M/Customized
· Communication: 3G/4G/5G, WIFI or Bluetooth Optional
· Start Mode: Plug and Play/RFID card/App
· Function: APP Control, screen display, Voltage Monitoring
Specifications:
| Product Name | EV Charging Station (WallBox) | |||
| Data | Model | GS7-AC-BO1 | GS11-AC-BO1 | GS22-AC-BO1 |
| Input | Power Supply | 1P+N+PE | 3P+N+PE | 3P+N+PE |
| Rated Voltage | 200~220V AC | 380~400V AC | 380~400V AC | |
| Rated Current | 32A | 16A | 32A | |
| Output | Output Voltage | 200~220V AC | 380~400V AC | 380~400V AC |
| Output Current | 32A | 16A | 32A | |
| Rated Power | 7KW | 11KW | 22KW | |
| Package | Unit Size | 340*285*147mm | ||
| Package Size | 570*350*310mm | 570*350*310mm | 570*350*310mm | |
| Net Weight | 3.8KGS | 4.5KGS | 4.5KGS | |
| Gross Weight | 6.5KGS | 6.5KGS | 6.5KGS | |
| Communication | WIFI | Optional | ||
| 3G/4G/5G | Optional | |||
| OCPP | OCPP 1.6 Json (OCPP 2.0 Optional) | |||
| User Interface | Charging Port | Type 1/ Type 2 | ||
| Cable Length | 3.5M or customization length | |||
| LED Indicator | White/Green/Black/Blue/Orange/Purple/Customized | |||
| Start Mode | Plug&Play / RFID Card / APP | |||
| Emergency Stop | YES | |||
| Environment | Installation | Wall-mounted Pole Mounted | ||
| Work Temperature | -25℃-+50℃ | |||
| Work Humidity | 5%-95% | |||
| Work Altitude | <2000M | |||
Our Company:
Sichuan Tianfu Xiongzhou Intelligent Engineering Co., LTD was founded in 2016, we focus on the R&D and sales
of intelligent charging piles, plugs, connectors and other auto parts. According to customer requirements, we can
design and manufacture AC charging piles in accordance with China (GB)/European Union (CE)/United States (UL)
standards and software platforms equipped with OCPP 1.6 protocol .
Our Advantages
1. Smart EV charger manufactured with GB, CE and UL certificate.
2. Internationalized sales team with 100% working enthusiasm.
3. Each EV charger passes water leakage test before leaves factory.
4. Direct Manufacturer =High Quality +Competitive price + Good Service.
5. One of the famous companies in the industry.
6. The quality of products has won the praise of domestic and foreign customers.
Why Choose Us?
1. More competitive price
Integrated R&D production and sales in one, can supply more competitive price for customer.
2. Efficient Production capacity
Our employees are all skilled and experienced, who can produce substantial qualified products in a shorter time,
which minimize the lead time of customer order.
3. Customization support
Outer shell shape color customization available and logo customization available Etc, which meeting a large variety
of customization request of customers.
4. Easy to operate
Factory pre-commissioning of network settings– ready to connect out-of-the-box.
5. High quality and complete after-sales service.
|
|
