3G Residential EV Charging Station CMS 60Hz Commercial Electric Car Charger

Sichuan Tianfu Xiongzhou Intelligent Engineering Co., Ltd
Contact Now
    Buy cheap 3G Residential EV Charging Station CMS 60Hz Commercial Electric Car Charger from wholesalers

    Buy cheap 3G Residential EV Charging Station CMS 60Hz Commercial Electric Car Charger from wholesalers
    • Buy cheap 3G Residential EV Charging Station CMS 60Hz Commercial Electric Car Charger from wholesalers
    • Buy cheap 3G Residential EV Charging Station CMS 60Hz Commercial Electric Car Charger from wholesalers

    3G Residential EV Charging Station CMS 60Hz Commercial Electric Car Charger

    Ask Lasest Price
    Brand Name : Green Science
    Model Number : GS7-AC-B01
    Certification : GB CE UL
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10000 Sets Per Month
    Delivery Time : 10-15Workday
    • Product Details
    • Company Profile

    3G Residential EV Charging Station CMS 60Hz Commercial Electric Car Charger


    IP65 7KW 32A Smart EV Charging Pile For Residential & Commercial

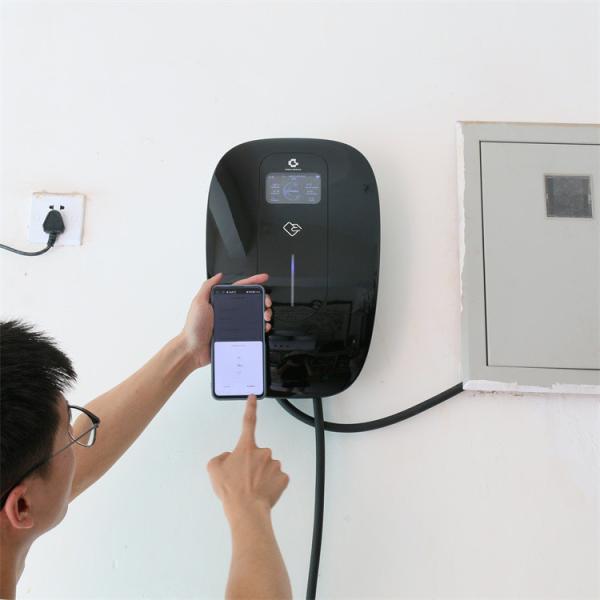

    Our EV charger has the appearance of more innovative: Minimal size,streamline design; smarter terminal control: Wireless communication(Wi-Fi/Bluetooth), OCPP communication protocol with CMS , Smart charge or scheduled charge by App.


    1. Simple structure: this EV charger is lightweight and it occupies a small space, so it's very portable be and easy to fixed.


    2. Overall protection level reaches IP65, which has good dust and water resistance, so you can install and operate safely both indoors and outdoors.


    3. Its intelligent hardware communicates with your vehicle for safe, simple and efficient charging.It has different functions for your option,such as: LCD Screen/WIFI/Bluetooth/4G/Ethernet and OCPP.


    Quick Detail:

    Model Number: GS7-AC-B01

    Rated Voltage:220V AC

    Rated Current: 32A

    Rated Output Power: 7kw

    Charging Port: Type 2 Cable

    Cable Length: 3.5M/Customized

    Communication: 3G/4G/5G, WIFI or Bluetooth Optional

    Start Mode: Plug and Play/RFID card/App

    Function: APP Control, screen display, Voltage Monitoring

    Specifications:

    Product NameEV Charging Station (WallBox)
    DataModelGS7-AC-BO1GS11-AC-BO1GS22-AC-BO1
    InputPower Supply1P+N+PE3P+N+PE3P+N+PE
    Rated Voltage200~220V AC380~400V AC380~400V AC
    Rated Current32A16A32A
    OutputOutput Voltage200~220V AC380~400V AC380~400V AC
    Output Current32A16A32A
    Rated Power7KW11KW22KW
    PackageUnit Size340*285*147mm
    Package Size570*350*310mm570*350*310mm570*350*310mm
    Net Weight3.8KGS4.5KGS4.5KGS
    Gross Weight6.5KGS6.5KGS6.5KGS
    CommunicationWIFIOptional
    3G/4G/5GOptional
    OCPPOCPP 1.6 Json (OCPP 2.0 Optional)
    User InterfaceCharging PortType 1/ Type 2
    Cable Length3.5M or customization length
    LED IndicatorWhite/Green/Black/Blue/Orange/Purple/Customized
    Start ModePlug&Play / RFID Card / APP
    Emergency StopYES
    EnvironmentInstallationWall-mounted Pole Mounted
    Work Temperature-25℃-+50℃
    Work Humidity5%-95%
    Work Altitude<2000M
    Maintainance

    Kircuit components

    The following inspections shall be carried out by professional maintenance personnel: Weekly routine inspection: whether the mechanical lock buckle of the charging gun damaged and whether the connection is abnormal.

    Quarterly routine inspection: whether there is ignition burning at the connection of arging gun wire core. If there is any abnormality, replace the parts in time.

    Annual routine check: use brushes and vacuum cleaners to remove dust from the box.

    then cleaning, be careful to inhale dust into the components by mistake, resulting in ort circuit. Check all components of the box and replace abnormal parts in time.


    Euipment appearance

    Check the appearance of the charger monthly to see if there are stains, and clean charger shell.
